The Simran AR-Series represents the industry benchmark in heavy-duty automatic voltage regulation. Unlike basic transformers that blindly pass dangerous electrical fluctuations directly to your equipment, the AR-Series actively balances incoming power grid irregularities. Whether you need to run high-value 110V American appliances safely abroad, or protect sensitive 220V international equipment natively, these industrial-grade transformers deliver a steady, continuous stream of clean power.
⭐ KEY FEATURES
- Automatic Voltage Regulation (AVR): Dynamically stabilizes fluctuating line voltages from brownouts, sags, spikes, and surges to prevent damage to internal computer circuitry.
- Dual-Stage Conversion: Seamlessly steps down foreign 220V–240V electricity into safe 110V–120V power, or steps up domestic power grids to 220V–240V.
- Analog Display Meter: Convenient front-facing volt-meter display provides real-time, at-a-glance readouts of active output voltage levels.
- Universal Output Architecture: Multi-socket front panel accepts a wide variety of global prong standards, eliminating the need for loose, unsafe wall adapters.
- Built-In Overload Protection: Dual replaceable fuses automatically trip if the system experiences a severe electrical overload, isolating your high-value hardware from harm.
- Continuous Duty Design: Crafted with a premium, heavy-iron core capable of sustained 24/7 continuous operation for critical home appliances and medical infrastructure.
📊 TECHNICAL SPECIFICATIONS
| Model | Max Capacity | Dimensions (Approximate) | Weight (Approximate) |
|---|

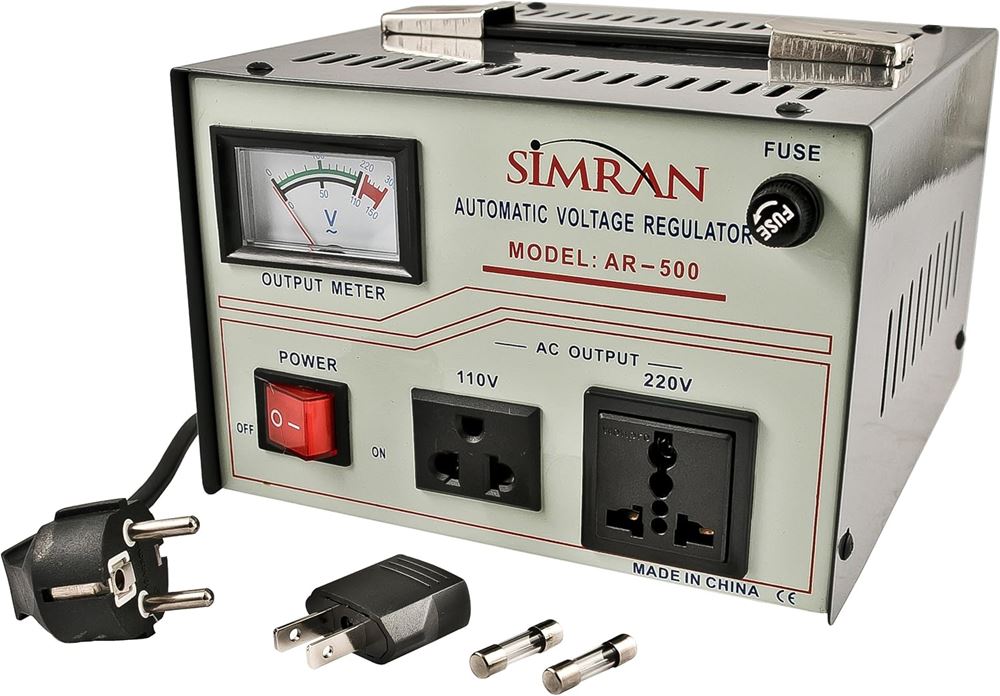

| AR500 | 500 Watts | 5.5" H x 7.5" W x 8.25" D | 11 lbs (5.0 kg) |
| AR1000 | 1000 Watts | 5.5" H x 10.0" W x 11.5" D | 19 lbs (8.6 kg) |

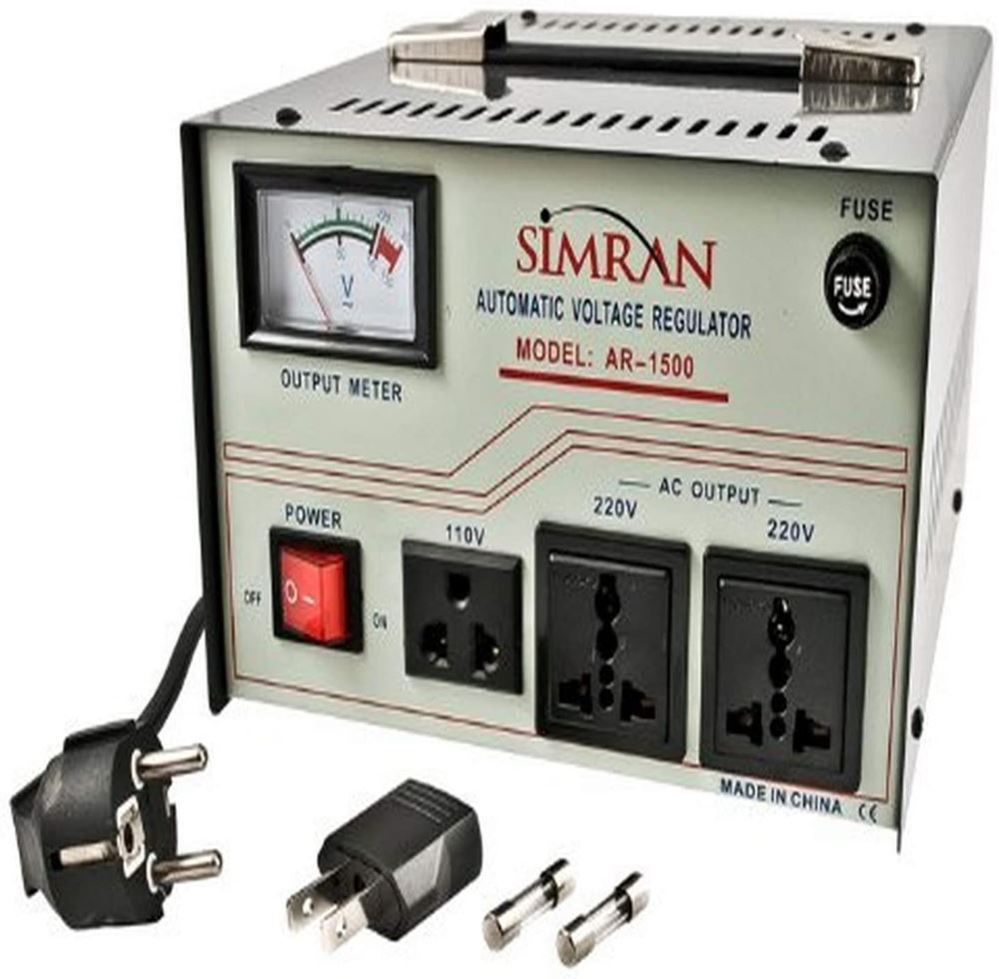

| AR1500 | 1500 Watts | 5.5" H x 10.0" W x 11.5" D | 22 lbs (10.0 kg) |

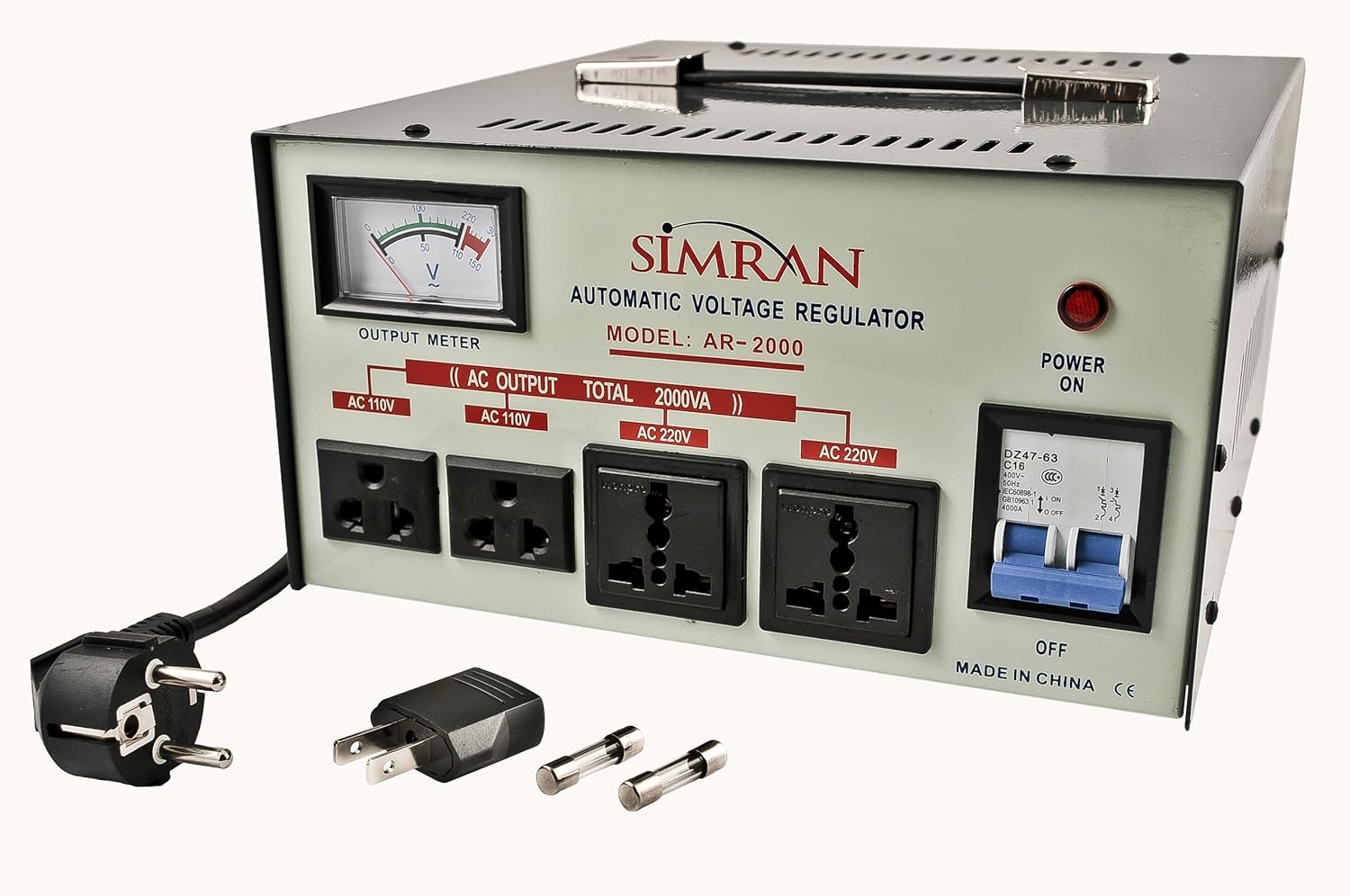

| AR2000 | 2000 Watts | 5.5" H x 10.0" W x 11.5" D | 24–27 lbs (10.9–12.3 kg) |

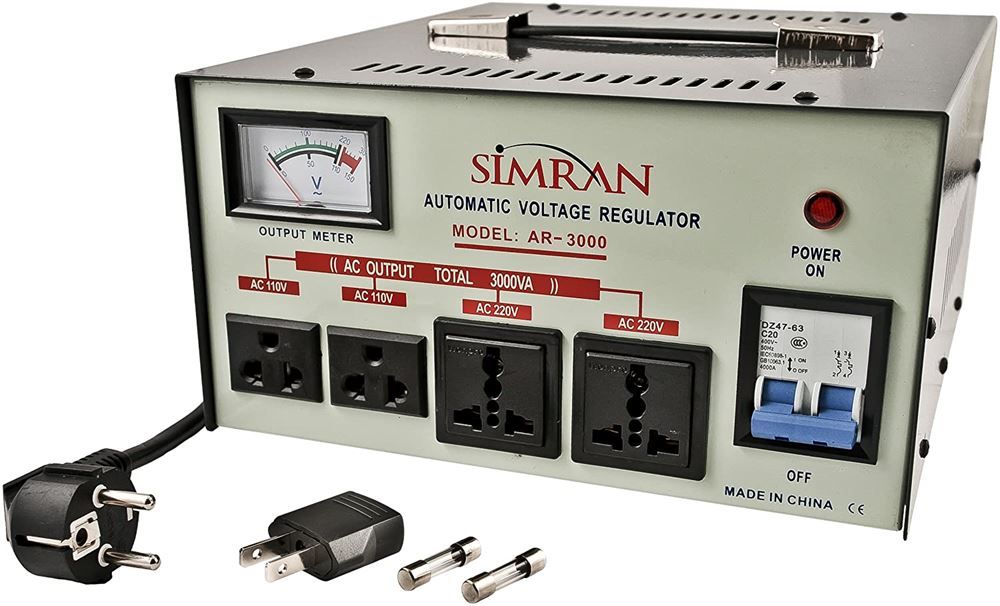

| AR3000 | 3000 Watts | 6.0" H x 10.25" W x 11.5" D | 29 lbs (13.2 kg) |
| AR5000 | 5000 Watts | 6.5" H x 12.0" W x 12.0" D | 34–38 lbs (15.4–17.2 kg) |

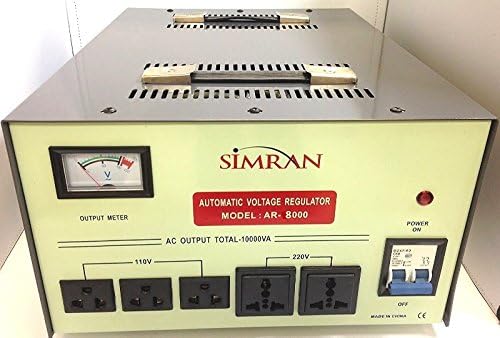

| AR8000 * | 8000 Watts | 6.5" H x 12.0" W x 12.0" D | 62–65 lbs (28.1–29.5 kg) |

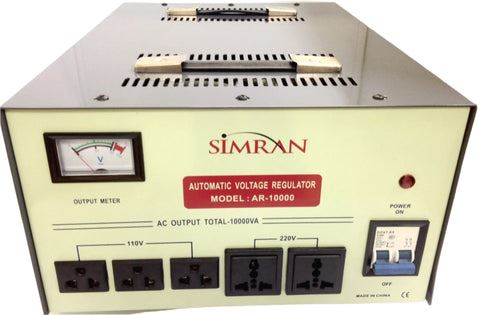

| AR10000 * | 10000 Watts | 6.5" H x 12.0" W x 12.0" D | 65–69 lbs (29.5–31.3 kg) |

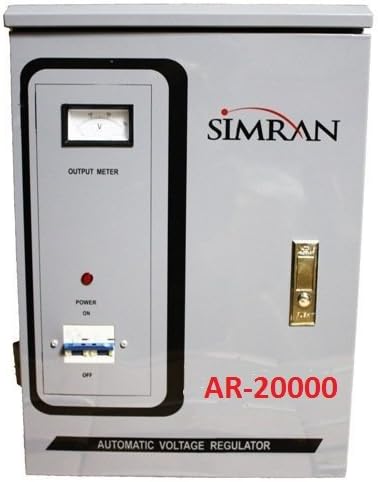

| AR20000 * | 20000 Watts | 22.0" H x 22.0" W x 26.0" D | 115 lbs (52.2 kg) |
* Note: Industrial models AR8000, AR10000, and AR20000 do not include standard residential wall plugs. They feature heavy rear terminal blocks and require hardwire installation into your electrical panel by a licensed electrician.
🛒 BUYING GUIDE: THE SIMRAN 3X SAFETY RULE
To avoid damaging your equipment, always choose a model that incorporates a proper surge headroom buffer. Check your appliance's rear data tag for its total wattage rating and apply the following parameters:
- Resistance Appliances (Heaters, Coffee Makers, Toasters): Your stabilizer must have a maximum capacity at least 2 times (2X) higher than the appliance's continuous wattage. (Example: A 1000W coffee maker requires an AR2000).
- Motor / Inductive Appliances (Refrigerators, Microwaves, Washers, AC Compressors): These feature massive kinetic startup requirements. Your stabilizer capacity must be at least 3 times (3X) higher than the active appliance load. (Example: A 1500W microwave requires an AR5000).
⚠️ CRITICAL SAFETY INFORMATION
- Input Selector Configuration: You must toggle the rear voltage selection switch to match your local residential supply line voltage (110V across North America or 220V across European/Asian networks) before plugging it into the wall. Setting this incorrectly will cause immediate damage.
- Adequate Air Circulating Clearance: Heavy copper winding blocks naturally generate ambient heat during electrical conversion. Keep a minimum of 4 inches of empty space on all sides of the transformer's metal chassis vents. Do not run inside enclosed closets or sealed cabinets.
- Dry Environment Operating Limits: Strictly designed for indoor, dry applications. Do not run near plumbing hubs, washbasins, laundry drainage, or open exterior exposures.
❓ FREQUENTLY ASKED QUESTIONS (FAQs)
Q: Can I use this for my American 220V clothes dryer or air conditioner?
A: No. Simran AR stabilizers output Single-Phase 220V power (standard in Europe/Asia). US 220V/240V large appliances utilize a Split-Phase configuration. These two structures are incompatible and attempting to bridge them will trigger equipment failures.
Q: Is this unit safe to use with sensitive medical CPAP equipment?
A: Yes. The built-in Automatic Voltage Regulator acts as an excellent filtration dampener to safeguard vulnerable onboard processor assemblies from dangerous spikes or brownouts. We recommend an AR1000 or AR1500 to handle the peak power draw when the humidifier element kicks on.
Q: Why does my stabilizer occasionally emit a brief clicking noise?
A: This indicates completely healthy operations. The system relays are actively shifting across the internal winding taps to counteract sudden variations coming through your local power grid, shielding downstream electronics.
Q: Can I use this stabilizer with high-heat personal care electronics like hair dryers, curling irons, or straighteners?
A: We highly discourage it. High-heat appliances draw an immense amount of instantaneous wattage that can easily overwhelm a stabilizer. Because a hair dryer can pull anywhere from 1600W to 2200W, you would need a massive, heavy Simran AR5000 just to run it safely. It is far more cost-effective and practical to simply purchase a dual-voltage travel hair dryer or buy a local version of the appliance.
Q: Is the Simran AR Series safe to use with sensitive medical equipment like CPAP machines?
A: Yes, absolutely. In fact, this is one of the best use cases for the AR series. Because CPAP machines have delicate internal computers, the Automatic Voltage Regulation (AVR) feature in these units is critical. It actively filters out dangerous voltage spikes and brownouts that could otherwise fry your medical equipment. Tip: Most CPAP machines require at least a Simran AR1000 or AR1500 to safely handle the peak power draw when the heated humidifier element kicks on.
Q: Can I plug my PlayStation 5, Xbox Series X, or high-end gaming PC into this unit?
A: Yes. Modern gaming consoles and PC power supplies are highly sensitive to power fluctuations. The Simran AR series will keep the voltage completely stable during intense gaming sessions.
- For a PS5 or Xbox Series X, a Simran AR1000 is perfect.
- For a custom gaming PC with a large power supply (750W–1000W+), we recommend a Simran AR2000 or AR3000 to ensure you have a safe operating buffer.
Q: Does this stabilizer change the frequency from 50Hz to 60Hz (or vice versa)?
A: No. Simran AR stabilizers regulate and convert voltage (110V to 220V), but they do not change the frequency/cycles (Hz) of the electricity. The output frequency will always match the input frequency from your wall outlet.
- Why this matters: 99% of modern electronics (laptops, TVs, game consoles, phone chargers) are dual-frequency (50/60Hz) and will work perfectly. However, appliances with analog clocks, timers, or older AC motorized parts (like some older blenders or washing machines) may run slightly slower or faster if moved between 50Hz and 60Hz regions.
