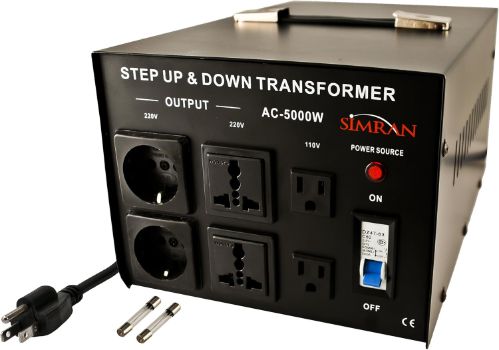

The Simran AC-5000 Heavy-Duty Voltage Converter Transformer works with both 50Hz and 60Hz, stepping up 110V/120V to 220V/240V or stepping down 220V/240V to 110V/120V. It features an ON/OFF switch with indicator, two outlets for each voltage, and a universal 220V/240V socket (excluding large South Africa plugs). The insulated power cord has a grounded USA plug, with a grounded European Shucko plug included for use in Europe and Asia. Housed in a metal casing, it is fuse protected with two spare fuses provided. CE certified, this heavy-duty transformer is designed for continuous worldwide use with electronics, appliances, and heavy-duty machines.
- 5000 Watt Maximum Capacity Heavy-Duty Voltage Converter Transformer
- Input: 110V/120V or 220V/230V/240V (Single Phase)
- Output: 110V/120V or 220V/230V/240V (Single Phase)
- Input Selection: (110V/200V/220V/240V)
- Six Outlets: (2 x 110V and 4 x 220V)
- Power Switch
- LED Indicator
- Power Cord fitted with standard 3-Pin Grounded US Plug.
- Heavy Duty for continuous use
- Durable Industrial cord material
- Ventilated design for continuous use
- Fuse Protection: Fuse will cut off the current if the transformer is overloaded.
- CE Certified.
- For Indoor Use Only
- 30-Day Returns
- 2-Year Warranty
- Weight: Approximately 44 lbs.
- Dimensions (H X W X D):6.5 X 8.5 X 12
- 2 Spare Fuses Included
- European Plug Adapter Included
- Model: AC5000
How to Choose the Right Voltage Converter
To select the appropriate voltage converter for your device, first identify the voltage (110 or 220 Volt AC) and wattage rating (watts or amps) listed on the back or bottom of the device or in its instruction manual. If only amps are provided without watts, calculate the watts by multiplying the input voltage by the amperage.
For example,
Volts (AC input) x Amps (current) = Watts (power)
110V x 0.5A = 55W
Keep in mind that some devices require a larger safety margin because they can have power surges. It is recommended not to use a converter beyond roughly 80% of its maximum wattage. It is safer to have a converter with a higher capacity than needed rather than one that is insufficient. Using a converter at full capacity for extended periods can cause it to fail.
Warning: Make sure the wattage and voltage of your appliance or equipment and the wattage of the transformer is suitable for each other, and the proper input voltage is selected on the back of the transformer according to the country of use before you connect the transformer and turn it ON. Failure to follow the instructions may result in damage to the transformer and the appliance.
Chart For Voltage, Frequency, and Electrical Outlets Used Worldwide by Country
- 1x Simran 5000 Watt Transformer
- American to European Grounded Schuko Wall Outlet Plug Adapter x 1
- 2 x pare Fuses
- Instruction Leaflet
