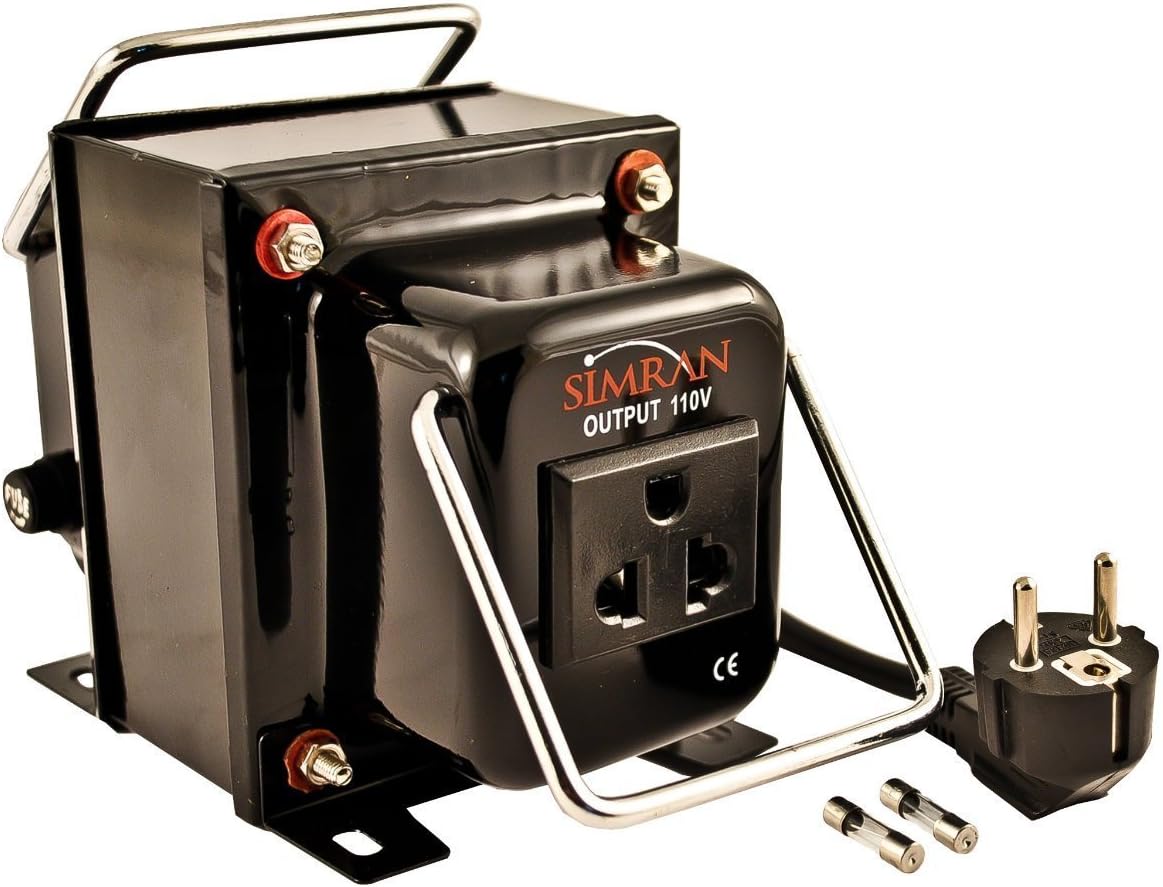

Simran THG-Series transformers convert 220/240V from abroad to 110/120V for North American appliances, featuring a European/Asian grounded plug and a durable metal case. CE Approved and built for continuous use, they come in capacities from 100W to 20,000W. With copper windings, shockproof sockets, and fuse protection (300W-5,000W models), these compact, portable transformers ensure safe, stable power for devices ranging from laptops to heavy equipment. Take your electronics anywhere with Simran THG Step Down Transformers.
Heavy Duty Grounded step down converters for continuous use.Enables To use North American 110/120 volt appliances in foreign countries with 220/230/240 volt electricityConverts 220-240 volts down to 110-120 voltsPerfect for use with Home Electronics, Computers, Kitchen Appliances and other Electrical DevicesAvailable from 100W to 20000W maximum capacityShock proof socketsNorth American receptacle: (Unit socket) accepts 2 prong non-grounded or 3 prong grounded U.S. plugEuro/Asian power cord with Schuko Grounded plug4.8mm plug pin diameterInput 220 volt 50hz Single PhaseOutput 110 Volt 50hzProfessional Hardwiring Required For Models 10000-Watt and up.Built-in Fuse Protection For Models 300W to 5000WFor Indoor Use OnlyThese Voltage Converters Are Not Suitable For Use In USA/Canada. For Export Overseas Use Only.30-Day Returns2-Year Warranty
Model Number
|
Wattage
|
Weight
|
Dimensions
|
|
100W |
4 lbs. |
5 x 5 x 3 in. |
|
200W |
5 lbs. |
5 x 5 x 3 in. |
|
300W |
6 lbs. |
6 x 5 x 4 in. |
|
500W |
8 lbs. |
6 x 5 x 4 in. |
|
750W |
10 lbs. |
7 x 5 x 4 in. |
|
1000W |
17 lbs. |
8 x 8 x 5 in. |
|
1500W |
19 lbs. |
9 x 8 x 6 in. |
|
2000W |
24 lbs. |
10 x 9 x 8 in. |
|
3000W |
31 lbs.
|
11 x 9 x 9 in. |
|
5000W |
45 lbs. |
12 x 9.5 x 8.5 in. |
|
10000W |
75 lbs. |
16 x 13 x 12 in. |
|
15000W |
95 lbs. |
17 x 13 x 12 in. |
|
20000W |
105 lbs. |
18 x 13 x 13 in. |
Weight and Dimensions are approximate. Models 100W and 200W do not have fuse system. Models 10000W, 15000W and 20000W requires hardwiring for input and output connections for customized configuration. Specifications are subject to change. Indoor use only.
How to Choose the Right Voltage Converter
To select the appropriate voltage converter for your device, first identify the voltage (110 or 220 Volt AC) and wattage rating (watts or amps) listed on the back or bottom of the device or in its instruction manual. If only amps are provided without watts, calculate the watts by multiplying the input voltage by the amperage.
For example,
Volts (AC input) x Amps (current) = Watts (power)
110V x 0.5A = 55W
Keep in mind that some devices require a larger safety margin because they can have power surges. It is recommended not to use a converter beyond roughly 80% of its maximum wattage. It is safer to have a converter with a higher capacity than needed rather than one that is insufficient. Using a converter at full capacity for extended periods can cause it to fail.
Warning:
Transformers should always be used carefully. Avoid exposure to moisture and keep them away from children. We are not responsible for any misuse of transformers. We can recommend the correct size and model for any device or electronic you have. Please reach out if you have any questions.
- THG Step Down Converter x 1
- Spare Fuses x 2 (for models 300w to 5000w)
